CNC Slant Bed Lathes

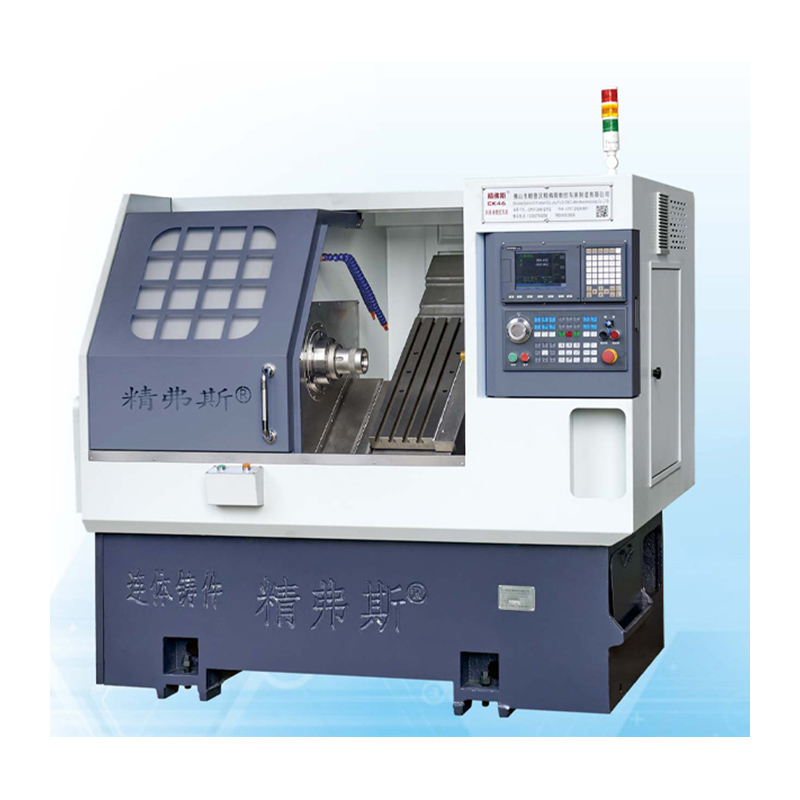

The Jingfusi® CNC Slant Bed Lathes feature a 35 degree inclined bed design coupled with a robust torque structure, ensuring minimal deformation even during heavy-load cutting operations. This inclined bed design facilitates simplified installation, replacement, and inspection processes. The incorporation of high-precision ball screws and spindles further guarantees exceptional precision and surface gloss in machining applications.

Model:CK46

Send Inquiry

Product Description

The CNC Slant Bed Lathes is an improvement and upgrade of Jingfusi® CNC on the original basis. On the basis of inheriting the high processing performance and easy operation of the original model, it has been developed with a fully enclosed inclined bed design and a larger operating space. , precision CNC machine tools with higher processing speed and easier adjustment and maintenance.


Product Details

CNC Slant Bed Lathes

Parameter List

project unit CK46 CK52 CK76
Maximum turning length mm 350
Maximum turning diameter on the bed mm Ø 500
Maximum turning diameter on the skateboard mm Ø 160
Bed inclination ° 35°
Effective travel of X/Z axis mm Diameter 1000/400
X/Z axis screw specifications mm 32
X/Z axis rail specifications mm 35
X/Z-axis motor power KW 1.3
Maximum fast movement of X/Z axis m/min 24
Machine tool length X width X height mm 2100X1580X1800
Total weight of the entire machine KG 2600
Knife number fix 8
Square knife size mm 20X20
Round hole cutter size mm Ø20
Total power kw 13 13 16
Average power consumption kw/h 2 2 2.5
main shaft Spindle end face form
A2 - 5 A2 - 6 A2 -8
Maximum spindle speed r/min 6000 (set to 4500) 4200(set to 3500) 3200(set to 2500)
Spindle motor power KW 7.5 7.5 11
Rated torque of spindle motor Nm 47.8Nm 47.8Nm 72Nm
Maximum bar passing diameter mm Ø 45 Ø 51 Ø 75

Machine Tool Accuracy

Machine accuracy,Jingfus factor standard ：
Major test item Schematic diagram Detection method
 Factory standard
Spindle radial beat, CNC Slant Bed Lathes
 Detect runout of outer cone 0.0025
X-axis repeat position CNC Slant Bed Lathes
 Detect repeated positioning of the X-axis. Note: First predict about 50 times to offset the error of the cold engine and hot engine, and then detect the repeated positioning. 0.0025
Z-axis repeat position CNC Slant Bed Lathes
 Detect repeated positioning on the Z axis. Note: First predict about 50 times to offset the error of the cold engine and hot engine, and then detect the repeated positioning. 0.0025
If the customer wants to test the ISO or VD1 accuracy of X/Z/Y axis, it shall be determined at the time of writing the contract. The customer must test this item at the same time of the initial acceptance of Jingfusi Factory.

CNC Slant Bed Lathes
