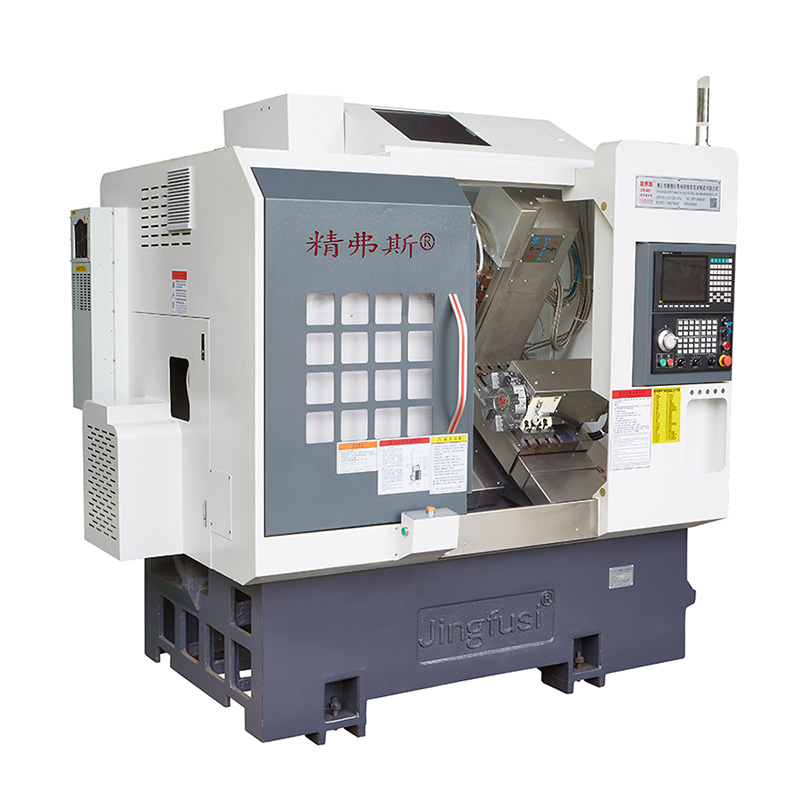

Turn-Mill Machining Machine
The Jingfusi® Turn-Mill Machining Machine is particularly suitable for mass production of parts with complex shapes, such as micro components, micro shafts, electronic connectors, glasses, clocks, and various hardware accessories.
Model:CK52-5+5+Y
Send Inquiry
Product Description
The Turn-Mill Machining Machine has the characteristics of high precision and high efficiency. It can switch between guide bushing and no guide bushing, perform appropriate processing according to the length of the workpiece, and has a reasonable structure. All three axes use linear rolling guides, which have good wear resistance and high precision. , driven by a servo motor, the linear tool row structure has the characteristics of rapid tool change, the CNC system has complete functions and is easy to control. Guide sleeve-less processing does not require grinding materials, and can process bars with high speed and high precision, and the minimum remaining material is only 30mm. Optional side processing device can realize drilling and milling processes.
Machine Travel Diagram
Product Details
Parameter List
| item | content | unit | CK46-5+5+Y | CK52-5+5+Y |
| Processing scope | Swing over bed | mm | Ø 500 | |
| Maximum turning outer circle length | mm | 320 | ||
|
Maximum bar diameter |
mm | Ø 45 | Ø 51 ~ 55 | |
| principal axis | Maximum spindle speed | r/min | 6000(set to 4000) | 4500 (set to 3500) |
| Spindle head type |
|
A2 - 5 | A2 - 6 | |
| Spindle through-hole diameter | mm | Ø 56 | Ø 66 | |
| feed | X/Z/Y axis maximum stroke | mm | 800/470/310 | |
| Maximum fast movement of X/Z/Y axis | m/min | 24 (Setting 18)/24 (Setting 18)/15 (Setting 8) | ||
| X/Z/Y axis screw rod | mm | 32/32/25 | ||
| X/Z/Y axis rail | mm | 35/35/25 | ||
| Knife tower | Eight station turret | PCS | 8 stations, can be equipped with double hole tool holders, optional with 12 stations | |
| Power head | Power head tool holding form |
|
ER25 | |
| Maximum speed of power head | r/min | 6000 (set to 4000), can be commonly used to process products from 4000 | ||
| Maximum installation drilling and milling head diameter | mm | Ø 16 | ||
| Distance between power head shaft and shaft | mm | 65 | ||
| electrical machinery | Main motor power/torque | KW/Nm | 7.5 KW/47.75NM, optional 11KW/70.03Nm for steel parts with a processing capacity of 80 and above | |
| X/Z/Y axis motor power/torque | KW/Nm | Yaskawa 1.8KW/11.5Nm. Optional new generation 2.4 KW/rated 11.5Nm | ||
| X/Z power head motor power/torque | KW/Nm | 2.4 KW/11.5NM | ||
| Maximum speed of power head motor | r/min | 5000 | ||
| other | Spindle positioning brake device |
|
hydraulic pressure | |
| Bed inclination | ° | 35° | ||
| Knife table plate length X width | mm | 700X290 | ||
| Machine tool length X width X height | mm | 2200X1580X2000 | ||
| Total weight of the entire machine | KG | 3430 | ||
| Total power | kw | 13 | ||
| Average power consumption | kw/h | 2 | ||
Machine Tool Accuracy
| Machine accuracy,Jingfus factor standard ： | ||||||||
| Major test item | Schematic diagram | Factory standard | ||||||
| Spindle radial beat |
|
Detect runout of outer cone | 0.0035 | |||||
| X-axis repeat position |
|
Detect repeated positioning of the X-axis. Note: First predict about 50 times to offset the error of the cold engine and hot engine, and then detect the repeated positioning. | 0.003 | |||||
| Z-axis repeat position |
 |
Detect repeated positioning on the Z axis. Note: First predict about 50 times to offset the error of the cold engine and hot engine, and then detect the repeated positioning. | 0.003 | |||||
| Y-axis repeat position |
|
Detect repeated positioning on the Y axis. Note: First predict about 50 times to offset the error of the cold engine and hot engine, and then detect the repeated positioning. | 0.004 | |||||
| C axis repeat position |
|
Detect the repositioning of the C-axis fixed point, note: first predict about 50 times to offset the error of the cold engine and hot engine, and then detect the repeated positioning | 20 arc seconds | |||||
| C axis position rotary |
|
Detect the random position accuracy of the C-axis, note: first predict about 50 times to offset the error of the cold engine and hot engine, and then check the repeated settings | 72 arc seconds | |||||
| Power head clamping beat |
|
Cone beat | 0.015 | |||||
| Power head clamping beat |
 |
Clamping beating | 0.01 | |||||
| If the customer wants to test the ISO or VD1 accuracy of X/Z/Y axis, it shall be determined at the time of writing the contract. The customer must test this item at the same time of the initial acceptance of Jingfusi Factory. | ||||||||
