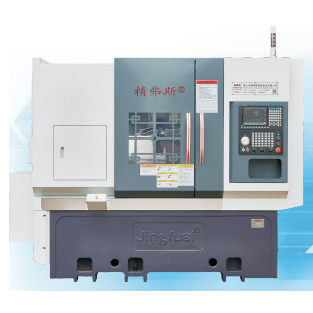

CNC Turret Type Automatic Lathe

We are pleased to introduce you to the Jingfusi® high-end CNC Turret Type Automatic Lathe, aiming to deepen your knowledge of this exceptional product. We warmly welcome both our new and valued customers to continue their partnership with us as we strive towards a brighter future together.

Model:CK52T-600

Send Inquiry

Product Description
You are cordially invited to visit our factory and explore the latest, competitively-priced, and top-quality Jingfusi® CNC Turret Type Automatic Lathe, currently in high demand. We eagerly anticipate the opportunity to collaborate with you.
CNC Turret Type Automatic Lathe Product Details

Turret Tail Top CNC Lathe

CNC Turret Type Automatic Lathe Parameter List

project Content unit CK52T-600 CK76T-600 CK46T-600
Processing scope Maximum rotation diameter of the spindle mm Ø 800
block type mm Ø 180 ~400
Maximum turning length mm 560
Maximum bar diameter mm Ø 51 ~ 55 Ø 72 Ø 45
principal axis
 Spindle head type
A2 - 6 A2 -8 A2 - 5
Spindle through-hole diameter mm Ø 66 Ø 86 Ø 56
Maximum spindle speed r/min 4200 3200 6000
Spindle set speed r/min 1 ~ 3500 1 ~2500 1 ~4500
feed Maximum travel of X/Z axis mm 230/600
Z-axis effective stroke mm 570
Maximum fast movement of X/Z axis m/min 24
X/Z axis setting for fast movement m/min 16/18
X/Z axis roller screw specifications mm 40
X/Z axis gauge specifications mm 35/45
Twelve position servo turret Twelve position servo turret center height
100
Knife tower opposite edge (outer diameter) mm 385
Center height of turret mm 100
Number of turret blades fix 12
Interference diameter of adjacent tool processing mm Ø180
Fixed tool holder size mm 25X25
Knife holder handle diameter mm Ø25
electrical machinery Main motor power/torque KW/Nm 11KW/rated 72Nm 15KW/rated 98Nm 7.5 KW/rated 47Nm
X/Z-axis motor power/torque KW/Nm Yaskawa 1.8KW/11.5Nm. Optional new generation 2.4 KW/rated 11.5Nm
Power/torque of turret tool changing motor KW/Nm New generation 1.0 KW/3.1NM
Cooling system motor power KW 0.3
High pressure cooling system motor power KW 3
Tailstock Tailstock stroke mm 420
Maximum stroke of tailstock ejector pin mm 100
Tailstock ejector pin drive form
Hydraulic, strong rigidity
Tailstock top needle cone hole taper MK Mohs 5 #, does not swing or warp during precision machining.
Maximum distance between tip and chuck mm 690
other Bed inclination ° 30° or 15°
Machine tool length X width X height mm 2500X1600X1700
Total weight of the entire machine KG The total weight of the entire machine is 4500KG, with an optional total weight of 3500KG, minus 10000 yuan
Total power kw 20
Average power consumption kw/h 3

CNC Turret Type Automatic Lathe Machine Tool Accuracy

Machine accuracy,Jingfus factor standard ：
Major test item Schematic diagram Detection method
 Factory standard
Spindle radial beat Turret Tail Top CNC Lathe Detect runout of outer cone 0.0025
X-axis repeat position Turret Tail Top CNC Lathe Detect repeated positioning of the X-axis. Note: First predict about 50 times to offset the error of the cold engine and hot engine, and then detect the repeated positioning. 0.0025
Z-axis repeat position Turret Tail Top CNC Lathe
 Detect repeated positioning on the Z axis. Note: First predict about 50 times to offset the error of the cold engine and hot engine, and then detect the repeated positioning. 0.0025
If the customer wants to test the ISO or VD1 accuracy of X/Z/Y axis, it shall be determined at the time of writing the contract. The customer must test this item at the same time of the initial acceptance of Jingfusi Factory.
